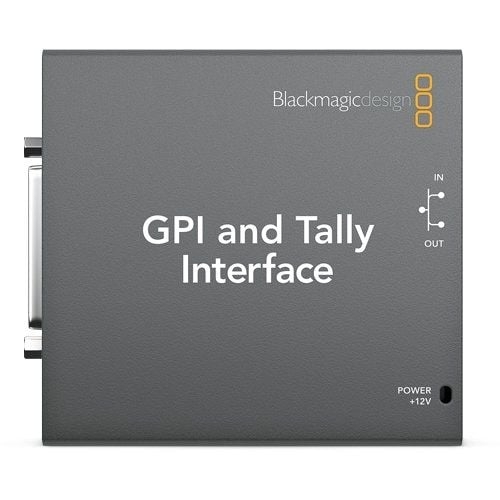

Gpi and tally interface

Thương hiệu: Blackmagic Design Loại: ATEM Live

14.580.000₫
THÔNG SỐ KỸ THUẬT Connections Contact Closure 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs. Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates. Inputs Optical isolators triggered by connection to gro...
chinh-sach
Hỗ trợ Ship COD Toàn Quốc
chinh-sach
Giao hàng ngay sau khi đặt hàng (áp dụng với Cần Thơ)
chinh-sach
Thu Cũ - Đổi Mới
chinh-sach
Nhà cung cấp xuất hóa đơn cho sản phẩm này

THÔNG SỐ KỸ THUẬT

Connections

Contact Closure

25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.

Computer Interface

1 x USB 2.0 high speed interface for configuration and firmware updates.

Inputs

Optical isolators triggered by connection to ground.
Max 5V at 14mA.

Outputs

Mechanical relay contact closure to ground. Max 30V at 1A.

Ethernet

10/100 BaseT with loop through for connecting to other ethernet enabled equipment.

Software

Software Included

Configured via ATEM Switcher Utility.

Internal Software Upgrade

Firmware built into software driver. Loaded at system startup or via updater software.

Operating Systems

Mac IconMac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Windows IconWindows 8.1 or Windows 10.

Power Requirements

Power Supply

12V power supply included with international socket adaptors for all countries.

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20 – 60 degrees celsius

Relative Humidity

Up to 95%

What’s Included

GPI and Tally Interface

Software CD

Power Supply

Warranty

12 Months Limited Manufacturer’s Warranty.

MÔ TẢ SẢN PHẨM

Bổ sung 8 Tally relay contact đến bất cứ ATEM switcher nào

TÍNH NĂNG NỔI BẬT

● Hiển thị tally cho tín hiệu video
● Cho biết trạng thái on-air
● Dùng cho ATEM Switcher/ Videohub Router
● 8 Input và Output khép kín
● Kết nối với nhiều GPI and Tally Interface khác

GPI and Tally Interface cho phép bổ sung tally vào ATEM switcher . Với 8 tally output khép kín, bạn có thể gửi một tín hiệu tally đến máy quay của bạn, replay machine và monitor để mọi người biết máy quay nào đang lên sóng. Nếu bạn cần nhiều tally output hơn, bạn chỉ cần nối nhiều GPI and Tally Interface lại với nhau vì chúng kết nối thông qua internet  đến ATEM production switcher của bạn.
